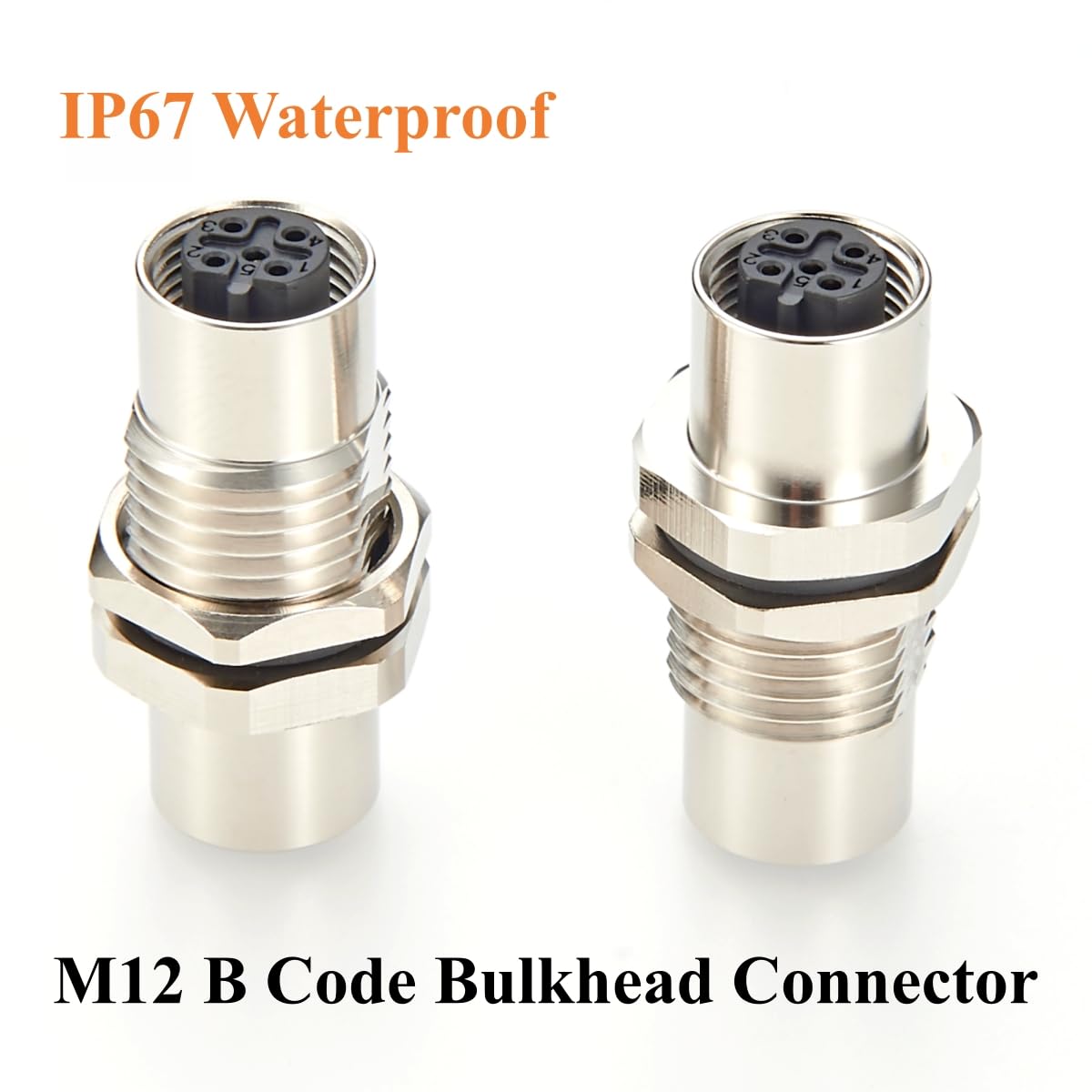

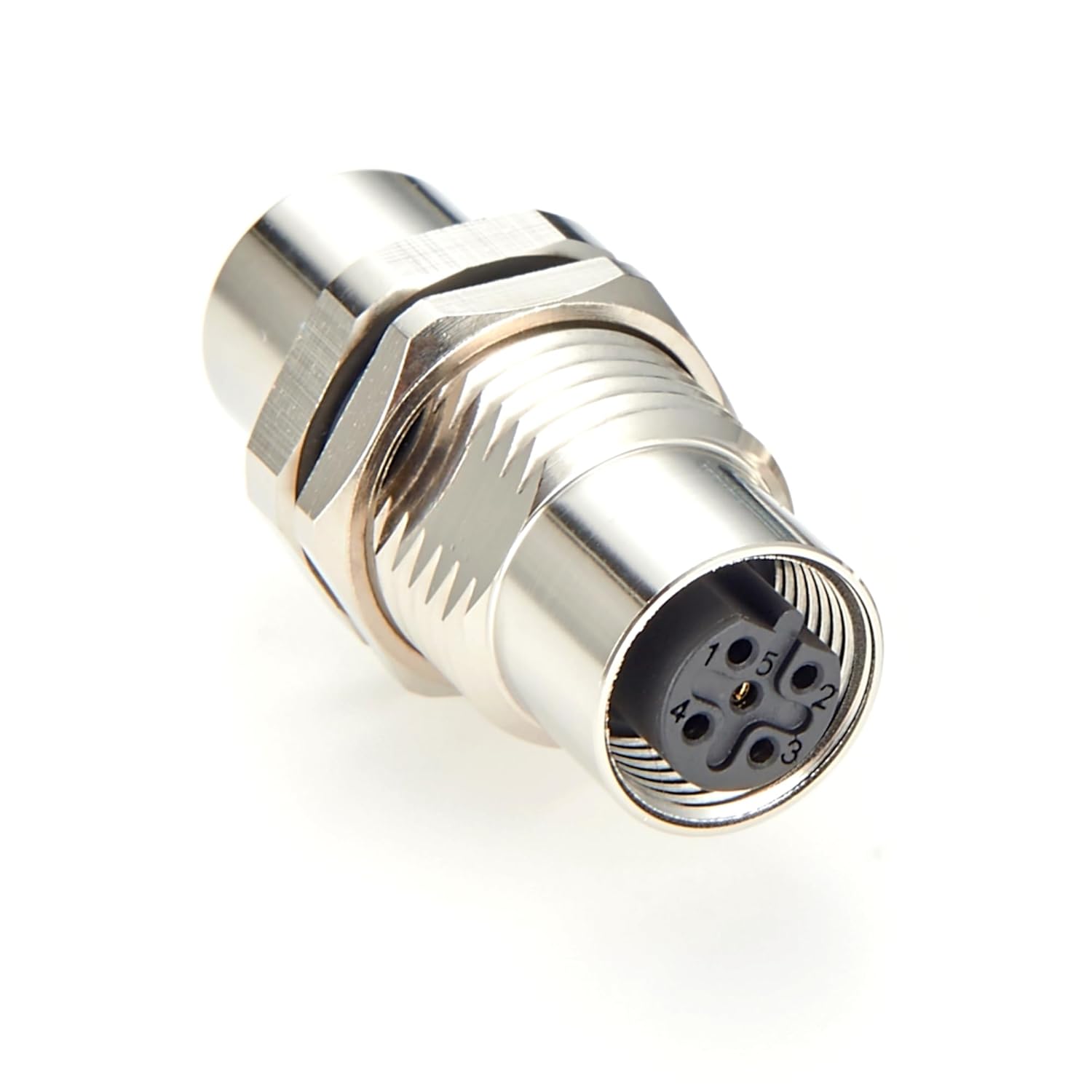

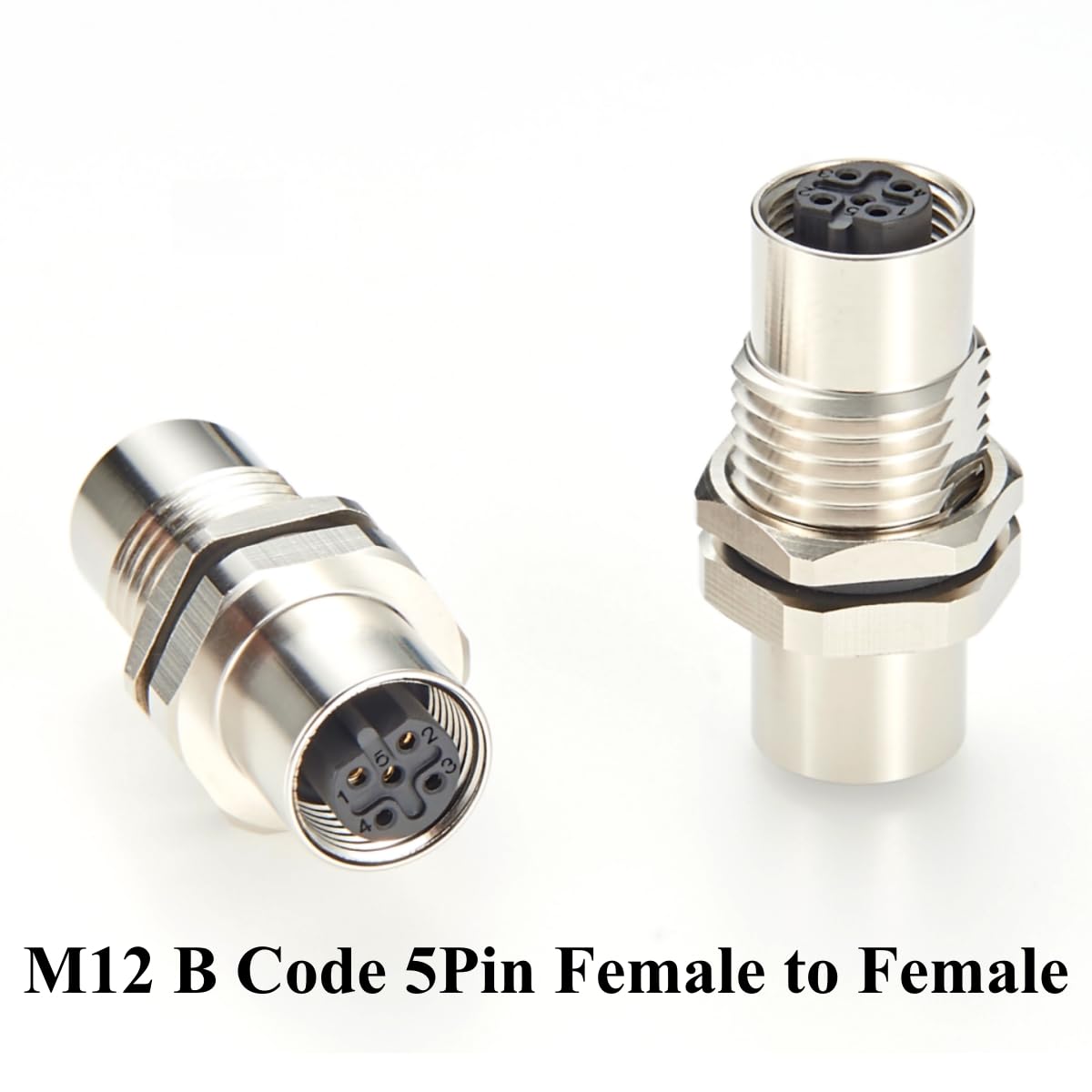

M12 B Code 5Pin Bulkhead Connector IP67 M12 Female to Female Panel Mount Circular Connector Socket Shielded Receptacle for PROFIBUS, Sensors, Control Panels (2PCS)

Specification:Product Name: M12 B Code 5Pin Female to Female Connector DWG No.: FT-B5-FFConnector Type: M12 B-Coded 5Pin FemalePanel Mount: Bulkhead Panel MountProtection Class: IP67Panel Cutout Size: 16.5mmSealing: O-ring SealingContact: Cooper AlloyShielding: Full ShieldedRated voltage: 60V AC/DCRated current: 4AHexagonal nut: M16 X 1.5

• ✔Industrial M12 B-Code – M12 B Code 5Pin Female to Female Bulkhead Connector, Designed with a B-coded 5-pin configuration for PROFIBUS and industrial fieldbus applications. Ensures reliable signal transmission.

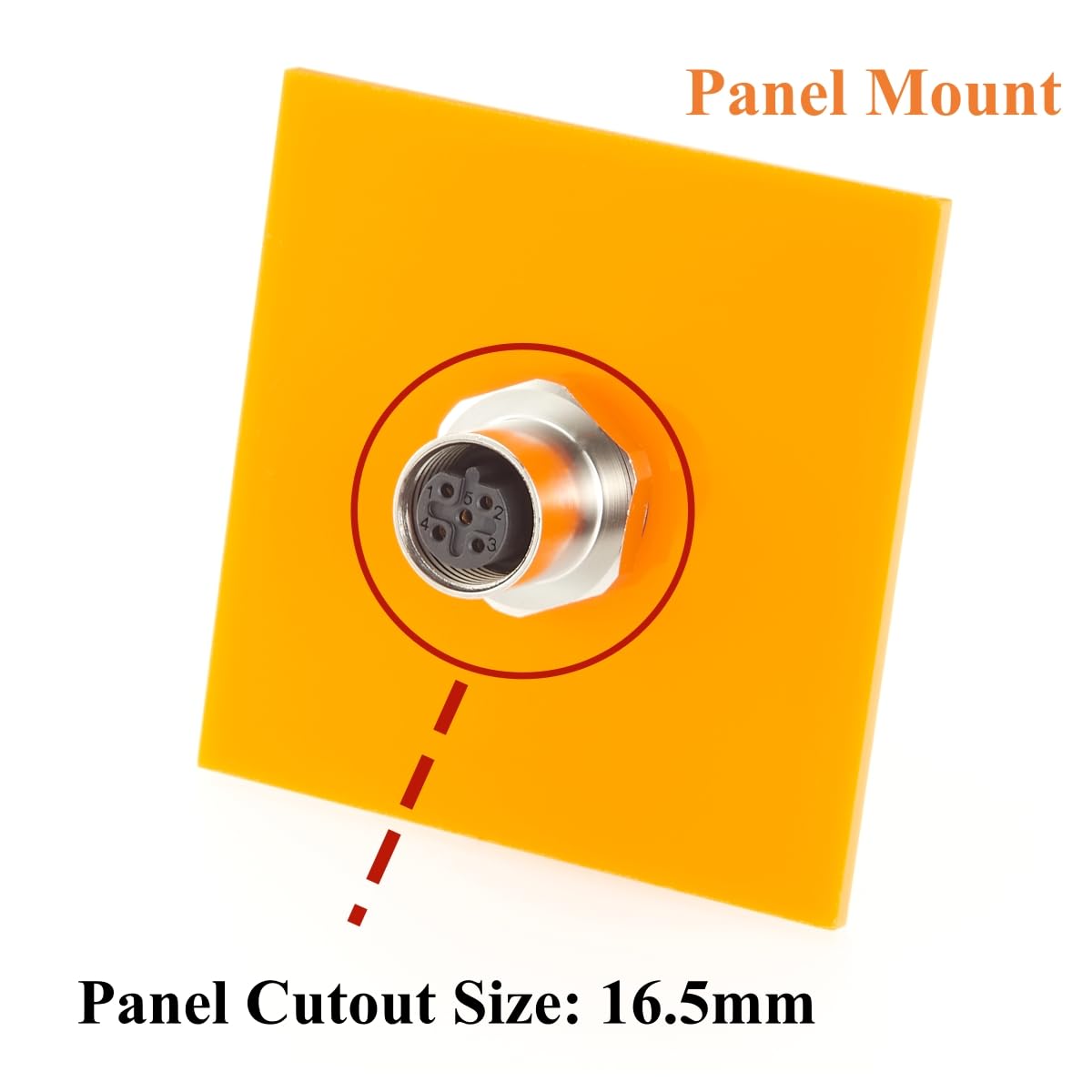

• ✔Panel Mount – M12 B Code Female to Female Bulkhead Connector is thread locking mechanism, Simply cut 16.5mm hole in the board and secure with the nut, Eesy to install. for control cabinet panels, automation systems, junction boxes, and industrial enclosures.
• ✔IP67 Waterproof & Dustproof – When the M12 B Code 5Pin Receptacle is locked correctly, With O-ring Sealing, IP67 Waterproof Shielded Socket, for EMI protection. Rugged Copper shell, corrosion resistance, providing excellent protection in harsh industrial environments.
• ✔Application – IP67 M12 B Code Shielded Industrial Circular Connector for PROFIBUS, fieldbus, sensors, actuators, motion controllers, PLC systems, Industrial automation, Control Cabinet, control panels, communication gateways, Robotics and so on.
• ✔Custom Cable – We are a professional cable manufacturer, please contact us for customised requirements. Please contact us if the cable you received is defective or does not work. We will solve the problems properly or send you a new replacement at once.
